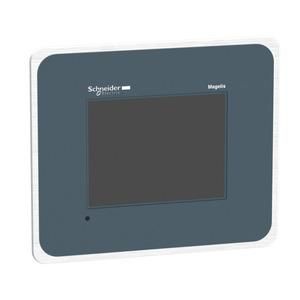

Schneider Electric HMIGTO2315 GTO 5.7 STAINLESS STEEL graphic panel

Schneider Electric HMIGTO2315 GTO 5.7 STAINLESS STEEL graphic panel

In stock

SKU: 687186

Price on request

€1,582.83

€0

Overview

Magelis GTO: the first optimized terminal that makes no compromises in terms of features and performance - Innovative display - Optimized communication - Hassle-free installation and sustainability - Optimized for your environment - Availability of a stainless steel version for applications in the food and beverage sector

Feature	Value
Voltage DC:	24.0 V
Protection class (IP):	IP66
Memory:	96000.0 kByte
Ethernet:	2.0
USB:	2.0
RS-232:	1.0
RS-422:	0.0
RS-485:	1.0
serial:	0.0
parallel:	0.0
Type of supply voltage:	AC/DC
Display design:	TFT
Screen diagonal:	5.7 inches
With color display:	yes
With alpha keyboard:	no
With numeric keyboard:	no
Number of PROFINET interfaces:	0.0
Width of front:	213.5 mm
Height of front:	181.0 mm
Installation depth:	59.5 mm
Operating temperature:	0.0 to 50.0 °C
IO-Link Master:	yes
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Rail mounting possible:	no
Number of HW interfaces wireless:	0.0
Supports protocol for data highway:	no
Supports protocol for other bus systems:	yes
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	yes
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	yes
Number of colors of the display:	65536.0
Number of Pixels, horizontal:	320.0
Number of pixels, vertical:	240.0
Number of function keys, programmable:	0.0
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	0.0
With printout:	yes
Number of online languages:	0.0
Additional software components, loadable:	yes
With software interfaces:	yes
Supports protocol for LON:	no
other:	1.0
Number of grayscale/bluescale levels of the display:	16.0
Number of system keys:	0.0
Wireless standard GPRS:	no
Number of keys with LED:	0.0
Wireless standard GSM:	no
Wireless standard UMTS:	no
Touch technology:	Resistive touch
Protection class (NEMA), front:	4X
