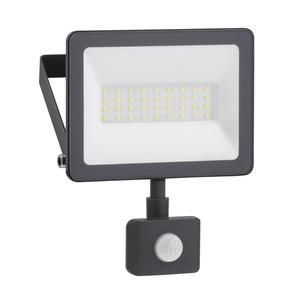

Schneider Electric IMT47216 m detector 20W/2000Lm /4000K LED spotlight

Schneider Electric IMT47216 m detector 20W/2000Lm /4000K LED spotlight

In stock

SKU: 875988

Price on request

€36.31

€0

Overview

LED spotlight with motion detector 20W, 2000lm, 4000k, IP44, IK05, cable 0.5m. LED spotlight with motion detector for house and object lighting, ideal for medium to large areas where precise light is required. The lighting of outdoor areas contributes greatly to safety on properties, low power consumption, low operating temperature and the compact design are further advantages of these LED spotlights. Areas of application entrances, paths, carports, parking spaces, pivoting LED spotlight with motion detector for wall mounting outdoors, ultra-long service life, alignment can be fixed using a twist lock. Very robust housing made of die-cast aluminum with corrosion-resistant stainless steel screws, wide light distribution 110° for even illumination, high temperature range. Technical data Connection 230-240 VAC, 50HZ, light source LED (LED board permanently mounted), power 20W, luminous intensity (lumen) 2000lm (20W), efficiency 100lm per watt. Beam angle 110°, power factor PFgt/0.9, shock resistance IK04, energy efficiency class A+, connection cable 0.5m pre-assembled, color rendering index (CRI) 80, color temperature 4000k (neutral white). Protection class IP44, LED service life 50,000 hours, detection angle 120°, range max. 12m, follow-up time 10s to 10min continuously adjustable, light sensor (sensitivity) 10lx to 2000lux continuously adjustable. Sensitivity continuously adjustable, dimensions 163.4 x 181.4 x 26 mm (20W), weight 570g (20W version), housing made of aluminum (black), optics glass cover, temperature range -30 to +45°C.

Property	Value
System power:	22.0 W
Rated luminous flux:	2000.0 lm
Housing color:	gray
Housing material:	aluminum
Protection class (IP):	IP44
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	no
With operating device:	no
Suitable for recessed mounting:	no
Length:	26.0 mm
Width:	163.4 mm
Height/depth:	181.4 mm
With motion detector:	no
Color temperature:	4000.0 K
Nominal voltage:	220.0 to 240.0 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for Lamp power:	20.0 W
Operating device:	not required
Impact resistance:	IK04
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Suitable for number of light sources:	1.0
Luminous flux:	2000.0 lm
Cover material:	Plastic, matt/satin
Cover of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for pedestal/floor mounting:	yes
Suitable for Traverse mounting:	yes
With light sensor:	yes
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	30000.0 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	-30.0 to 45.0 °C
Luminous intensity:	821.046 cd
Type of Wiring:	Termination
Power factor:	0.9
Number of poles:	3.0
Conductor cross-section:	1.0 mm²
Connectable conductor cross-section:	1.0 mm²
Connection type:	other
Luminous efficacy:	100.0 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	other
Colour consistency (McAdam ellipse):	other

Characteristics

Connectable conductor cross-section1.0 mm²

Rated luminous flux2000.0 lm

HABM Detector 20W/2000Lm /4000K

Manufacturer

HANIMT47216

GTIN3606489903169

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C30000.0 hours

Rated ambient temperature according to IEC 62722-2-1-30.0 to 45.0 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width163.4 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)Other

Color temperature4000.0K

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources1.0

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power20.0W

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth181.4 mm

Power factor0.9

Conductor cross-section1.0 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy100.0lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2000.0lm

Light intensity821,046 cds

Light distributorReflector

Light distributionSymmetrical

Length26.0 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorYes

Nominal voltage220.0 to 240.0 V

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471Other

Number of poles3.0

Impact resistanceIK04

IP protection)IP44

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance22.0W

AdjustabilityRotatable

Cover materialPlastic matt/satin

Housing materialAluminum
