Schneider Electric KSA800ED45010 straight 5m 800A busbar box

In stock
SKU: 679066
€2,743.91
Into a basketIn the basketGo

Overview

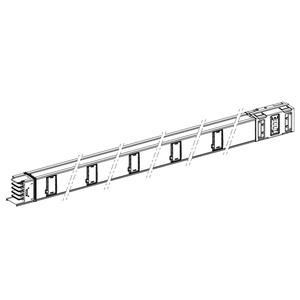

KSA800ED45010 is part of the Canalis KSA system. It consists of a 5 m long 800 A distribution element equipped with 10 sockets. All busbar distributors are supplied with a connection unit.

Property Value
Rated voltage AC 50 Hz: 690.0 V
RAL number: 9001.0
Color: white
Number of outlets: 10.0
Number of poles: 4.0
Rated current AC 50 Hz: 800.0 A
Design: Single
Number of conductors (without earth): 4.0
Flexible: no
Protection class (IP): IP55
Width: 113.0 mm
Height: 146.0 mm
Length (mm): 5000.0 mm

Characteristics

Number of conductors (excluding earth)4.0
HABKSA800ED45010 straight 5m 800A
ManufacturerSchneider Electric
HANKSA800ED45010
GTIN3606480005541
VersionSingles
Width113.0 mm
ColorWhite
FlexibleNo
Height146.0 mm
Length (mm)5000.0 mm
Number of poles4.0
RAL number9001.0
IP protection)IP55
