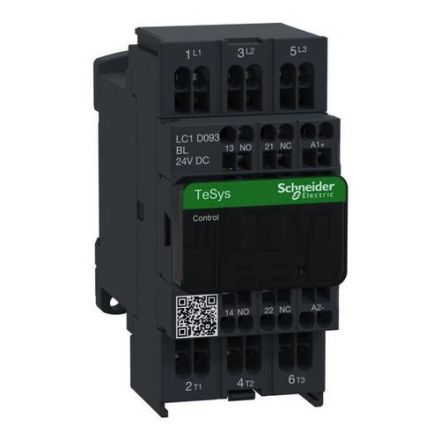

Schneider Electric LC1D093BL 3-pole 9A 24VDC 1S/1OE contactor

In stock
SKU: 677081
€50.63
Into a basketIn the basketGo

Overview

Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power sizes 40 to 65 A are equipped with EverLink terminals. These are patented and ensure a reliable and permanent connection.

Property Value
Opener main contact: 0.0
Maker main contact: 3.0
Opener auxiliary contacts: 1.0
Maker auxiliary contacts: 1.0
Rated operating power at AC-3, 400 V: 4.0 kW
P at AC-4, 400V: 2.2 kW
Rated operating current Ie at AC-1, 400 V: 20.0 A
Ie at AC-3, 400V: 9.0 A
Ie at AC-4, 400V: 6.0 A
Voltage type for actuation: DC
Rated control supply voltage DC: 24.0 V
Connection type main circuit: Spring-loaded connection
Suitable for series installation: no

Characteristics

HABLC1D093BL 3-pin 9A 24VDC 1NO/1NC
ManufacturerSchneider Electric
HANLC1D093BL
GTIN3389110808483
Connection type main circuitSpring-loaded connection
Rated operational power at AC-3, 400 V4.0kW
Rated operational current Ie at AC-1, 400 V20.0A
Suitable for series installationNo
Voltage type for actuationDC
Schneider Electric LC1D093BL 3-pole 9A 24VDC 1S/1OE contactor
