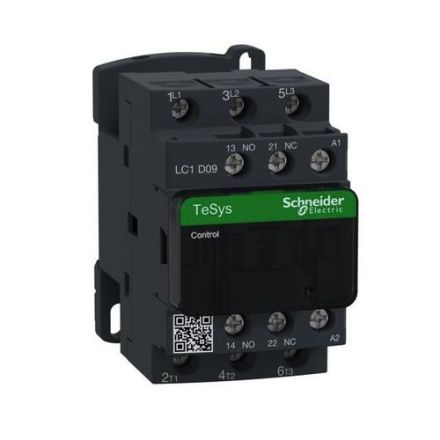

Schneider Electric LC1D09B7 3-pole 9A 24V 50/60HZ 1S/1OE contactor

In stock

SKU: 675596

Price on request

€34.34

€0

Overview

3-pole TeSys D contactor for motor applications up to 4kW at 400V/AC3. 24V 50/60Hz AC coil, built-in auxiliary contacts 1NO+1NC, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability, screw terminals. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Property	Value
Normally open main contact:	0.0
Normally open main contact:	3.0
Normally open auxiliary contacts:	1.0
Normally open auxiliary contacts:	1.0
Rated operating power at AC-3, 400 V:	4.0 kW
P at AC-4, 400V:	2.2 kW
Rated operating current Ie at AC-1, 400 V:	25.0 A
Ie at AC-3, 400V:	9.0 A
Ie at AC-4, 400V:	6.0 A
Type of voltage for actuation:	AC
Rated control supply voltage AC 50 Hz:	24.0 V
Voltage AC 60Hz:	24.0 V
Main circuit connection type:	Screw connection
Suitable for series installation:	no
