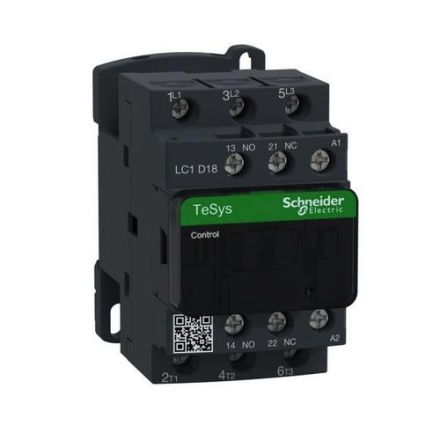

Schneider Electric LC1D18E7 3-pole 18A 48V 50/60HZ 1S/1OE contactor

In stock
SKU: 675600
€50.77
Into a basketIn the basketGo

Overview

3-pole TeSys D contactor for motor applications up to 7.5kW at 400V/AC3. 48V 50/60Hz AC coil, built-in auxiliary contacts 1NO+1NC, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability, screw terminals. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Property Value
Normally open main contact: 0.0
Normally open main contact: 3.0
Normally open auxiliary contacts: 1.0
Normally open auxiliary contacts: 1.0
Rated operating power at AC-3, 400 V: 7.5 kW
P at AC-4, 400V: 4.0 kW
Rated operating current Ie at AC-1, 400 V: 32.0 A
Ie at AC-3, 400V: 18.0 A
Ie at AC-4, 400V: 9.0 A
Type of voltage for actuation: AC
Rated control supply voltage AC 50 Hz: 48.0 V
Voltage AC 60Hz: 48.0 V
Main circuit connection type: Screw connection
Suitable for series installation: no

Characteristics

Rated control supply voltage AC 50 Hz48.0 V
HABLC1D18E7 3-pole 18A 48V 50/60HZ 1S/1OE
ManufacturerSchneider Electric
HANLC1D18E7
GTIN3389110349429
Connection type main circuitScrew connection
Rated operational power at AC-3, 400 V7.5kW
Rated operational current Ie at AC-1, 400 V32.0A
Suitable for series installationNo
Voltage type for actuationAC
