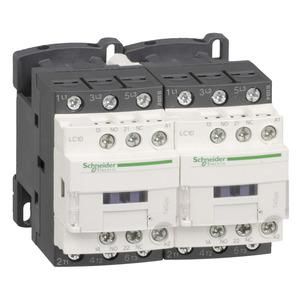

Schneider Electric LC2D12Q7 3-pole 12A 380/400V 50/60HZ reversing contactor

In stock

SKU: 682928

Price on request

€131.10

€0

Overview

Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power sizes 40 to 65 A are equipped with EverLink terminals. These are patented and ensure a reliable and permanent connection.

Property	Value
Connection type main circuit:	Screw connection
Voltage type for actuation:	AC
Function:	Reversing contactor
Rated operating power at AC-3, 400 V:	5.5 kW
Rated control supply voltage AC 50 Hz:	380.0 V
Rated control supply voltage AC 60 Hz:	380.0 V
Degree of protection (IP):	IP20
Rated operating current Ie at AC-3, 400 V:	12.0 A
Rated operating power NEMA:	5.59 kW
Degree of protection (NEMA):	other
Number of normally closed contacts as main contacts:	0.0
Number of normally open contacts as main contacts:	3.0
Design of electrical connection for auxiliary and control circuit:	Screw connection
Rail mounting possible:	no
