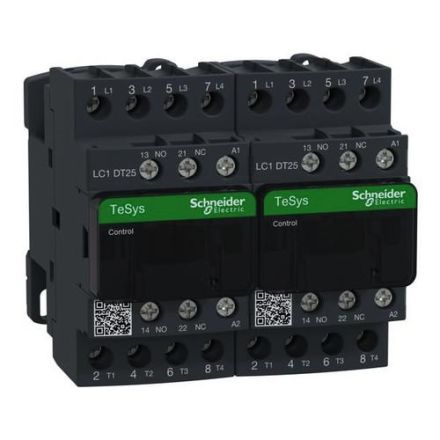

Schneider Electric LC2DT25G7 4-pole 25A 120V 50/60HZ reversing contactor

In stock
SKU: 683149
€131.64
Into a basketIn the basketGo

Overview

Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power sizes 40 to 65 A are equipped with EverLink terminals. These are patented and ensure a reliable and permanent connection.

Property Value
Connection type main circuit: Screw connection
Type of voltage for actuation: AC
Function: Reversing contactor
Rated control supply voltage AC 50 Hz: 120.0 V
Rated control supply voltage AC 60 Hz: 120.0 V
Degree of protection (IP): IP20
Rated operating current Ie at AC-3, 400 V: 12.0 A
Protection class (NEMA): other
Number of normally closed contacts as main contacts: 0.0
Number of normally open contacts as main contacts: 3.0
Design of electrical connection for auxiliary and control circuit: screw connection
Rail mounting possible: no

Characteristics

Design of electrical connection for auxiliary and control circuitScrew connection
Rated control supply voltage AC 50 Hz120.0 V
HABLC2DT25G7 4-pole 25A 120V 50/60HZ
ManufacturerSchneider Electric
HANLC2DT25G7
GTIN3389110515886
Connection type main circuitScrew connection
Number of normally open contacts as main contacts3.0
Rated operational current Ie at AC-3, 400 V12.0A
FunctionReversing contactor
IP protection)IP20
Protection class (NEMA)Other
Voltage type for actuationAC
Mounting rail possibleNo
Schneider Electric LC2DT25G7 4-pole 25A 120V 50/60HZ reversing contactor
Schneider Electric LC2DT25G7 4-pole 25A 120V 50/60HZ reversing contactor
€131.64
