With fuseNo
Rated operating current Ie12.0 A
External reset possibleNo
With transformerNo
Design of electrical connection for auxiliary and control circuitScrew connection
Type of motor starterDirect starter (DOL)
Rated operating current at AC-3, 400 V12.0 A
With short-circuit releaseNo
Ambient temperature, upper limit without restrictions40.0 °C
Rated operating power at AC-3, 230 V, 3-phase3.0 kW

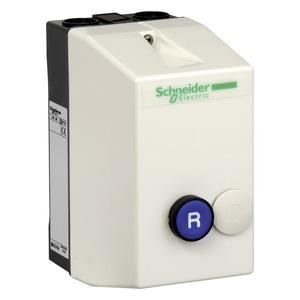

HABLE1D12P7A05 3-pin 12A
HANLE1D12P7A05
GTIN3389110576931
Connection type main circuitScrew connection
Number of command posts1.0
Number of auxiliary contacts as normally open0.0
Number of auxiliary contacts as normally closed0.0
Width88.0 mm
Suitable for EMERGENCY STOPNo
Height166.0 mm
IP protection)IP65
Voltage type for actuationAC
Depth128.5 mm
Mounting rail possibleNo
Supports protocol for AS-Interface Safety at WorkNo
Supports protocol for ASINo
Supports protocol for CANNo
Supports data highway protocolNo
Supports protocol for DeviceNetNo
Supports protocol for DeviceNet SafetyNo
Supports protocol for EtherNet/IPNo
Supports protocol for Foundation FieldbusNo
Supports protocol for INTERBUSNo
Supports protocol for INTERBUS-SafetyNo
Supports protocol for LONNo
Supports protocol for ModbusNo
Supports protocol for PROFIBUSNo
Supports protocol for PROFINET CBANo
Supports protocol for PROFINET IONo
Supports protocol for PROFIsafeNo
Supports protocol for SERCOSNo
Supports protocol for SUCONETNo
Supports protocol for SafetyBUS pNo
Supports protocol for TCP/IPNo
Supports protocol for other bus systemsNo
