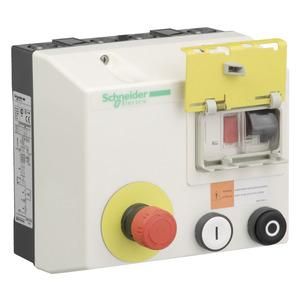

Schneider Electric LG7D12B716 3-pole 12A IP657 direct starter

Schneider Electric LG7D12B716 3-pole 12A IP657 direct starter

In stock

SKU: 679532

Price on request

€470.35

€0

Overview

Direct starter with magnetic release up to 15 kWThe combination of TeSys GV2 motor protection switch with TeSys D contactor guarantees maximum reliability, compact designs and the easiest selection.

Property	Value
Overload release current setting:	9.0 to 14.0 A
Voltage type for actuation:	AC
Connection type main circuit:	Screw connection
Operating power:	5.5 kW
Rated operating current Ie:	12.0 A
Rated voltage AC:	24.0 V
Rated control supply voltage AC 60 Hz:	24.0 V
With short-circuit release:	yes
Protection class (IP):	IP55
Supports protocol for SafetyBUS p:	no
Number of auxiliary contacts as normally closed:	0.0
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Design of electrical connection for auxiliary and control circuit:	screw connection
Supports protocol for Foundation Fieldbus:	no
Supports protocol for Data Highway:	no
Supports protocol for Modbus:	no
Trigger class:	CLASS 10
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Type of motor starter:	Direct starter (DOL)
Rated operating current at AC-3, 400 V:	12.0 A
Supports protocol for SUCONET:	no
Rail mounting possible:	no
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	40.0 °C
Conditional rated short-circuit current, allocation type 1, 480 Y/277 V:	6000.0 A
Rated operating power at AC-3, 230 V, 3-phase:	3.0 kW
Supports protocol for PROFIBUS:	no
Number of auxiliary contacts as normally open:	0.0
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
Conditional rated short-circuit current, assignment type 1, 600 Y/347 V:	3000.0 A
Rated power, 460 V, 60 Hz, 3-phase:	5.5 kW
With transformer:	no
Number of command points:	5.0
Suitable for EMERGENCY STOP:	yes
Assignment type according to IEC 60947-4-3:	Class 1
Number of indicator lights:	0.0
External reset possible:	no
With fuse:	no
Width:	175.0 mm
Height:	165.0 mm
Depth:	177.0 mm

Characteristics

With fuseNo

Rated operating current Ie12.0 A

External reset possibleNo

With transformerNo

Design of electrical connection for auxiliary and control circuitScrew connection

Type of motor starterDirect starter (DOL)

Rated operating current at AC-3, 400 V12.0 A

With short-circuit releaseYes

Temperature-compensated overload protectionYes

Ambient temperature, upper limit without restrictions40.0 °C

Rated operating power at AC-3, 230 V, 3-phase3.0 kW

Assignment type according to IEC 60947-4-3Class 1

HABLG7D12B716 3-pole 12A IP657

Manufacturer

HANLG7D12B716

GTIN3389118104709

Connection type main circuitScrew connection

Number of command posts5.0

Number of auxiliary contacts as normally open0.0

Number of auxiliary contacts as normally closed0.0

Trigger classCLASS 10

Width175.0 mm

Suitable for EMERGENCY STOPYes

Height165.0 mm

IP protection)IP55

Voltage type for actuationAC

Depth177.0 mm

Mounting rail possibleNo

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo

Overload release current setting9.0 to 14.0 A
