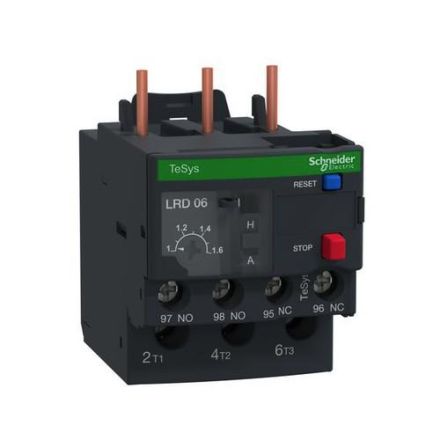

Schneider Electric LRD06 motor protection relay

In stock
SKU: 675572
€49.12
Into a basketIn the basketGo

Overview

Motor protection relays 0.06 -75 kW Thermal overload relays TeSys LRD are extremely reliable and cover the entire motor range up to 150 A. They have a manual-automatic reset and are available with different terminal variants. In combination with TeSys D they become an extremely compact starter.

Property Value
Connection type main circuit: Screw connection
Opener: 1.0
Maker: 1.0
Changeover: 0.0
Adjustable current range: 1.0 to 1.6 A
Mounting type: Direct mounting
Trip class: CLASS 10 A
Max. rated operating voltage Ue: 690.0 V
Reset function input: no
Reset function automatic: yes
Reset function button: yes

Characteristics

Adjustable current range1.0 to 1.6A
Automatic reset functionYes
Input reset functionNo
Button reset functionYes
HABLRD06
ManufacturerSchneider Electric
HANLRD06
GTIN3389110346763
Connection type main circuitScrew connection
Trigger classCLASS 10 A
Max. rated operating voltage Ue690.0V
Mounting typeDirect cultivation
