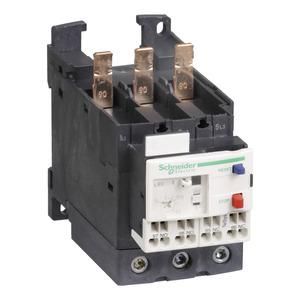

Schneider Electric LRD3503 37-50A CL 10A FZ Motor protection relay

In stock
SKU: 685271
€104.54
Into a basketIn the basketGo

Overview

Motor protection relays 0.06 -75 kW Thermal overload relays TeSys LRD are extremely reliable and cover the entire motor range up to 150 A. They have a manual-automatic reset and are available with different terminal variants. In combination with TeSys D they become an extremely compact starter.

Property Value
Main circuit connection type: Spring-loaded connection
Opener: 1.0
Maker: 1.0
Changeover contact: 0.0
Adjustable current range: 37.0 to 50.0 A
Mounting type: Direct mounting/stand-alone installation
Trip class: CLASS 10 A
Max. rated operating voltage Ue: 690.0 V
Reset function input: no
Reset function automatic: yes
Reset function button: yes

Characteristics

Adjustable current range37.0 to 50.0 A
Automatic reset functionYes
Input reset functionNo
Button reset functionYes
HABLRD3503 37-50A CL 10A FZ
ManufacturerSchneider Electric
HANLRD3503
GTIN3389119215640
Connection type main circuitSpring-loaded connection
Trigger classCLASS 10 A
Max. rated operating voltage Ue690.0V
Mounting typeDirect mounting/individual installation
