With fuseNo
Rated operating current Ie1.25 A
External reset possibleNo
With transformerNo
Design of electrical connection for auxiliary and control circuitScrew connection
Type of motor starterOther
Rated operating current at AC-3, 400 V5.0 A
With short-circuit releaseYes
Temperature-compensated overload protectionYes
Ambient temperature, upper limit without restrictions70.0 °C
Assignment type according to IEC 60947-4-3Class 2
Conditional rated short circuit current, allocation type 2, 400 V5.0 A
HABClass 10 1.25-5A 110-220V DC/AC

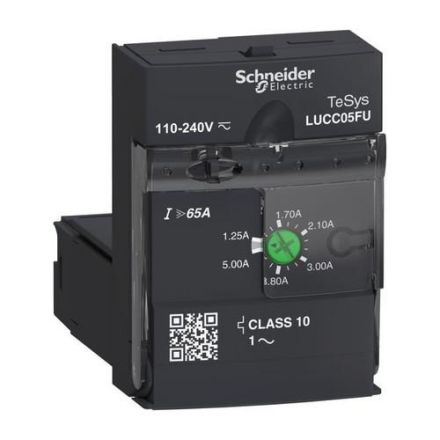

HANLUCC05FU
GTIN3389110364750
Connection type main circuitScrew connection
Number of command posts0.0
Number of auxiliary contacts as normally open0.0
Number of auxiliary contacts as normally closed0.0
Trigger classCLASS 10
Width45.0 mm
Suitable for EMERGENCY STOPNo
Height66.0 mm
IP protection)IP40
Voltage type for actuationAC/DC
Depth60.0 mm
Mounting rail possibleYes
Supports protocol for AS-Interface Safety at WorkNo
Supports protocol for ASINo
Supports protocol for CANNo
Supports data highway protocolNo
Supports protocol for DeviceNetNo
Supports protocol for DeviceNet SafetyNo
Supports protocol for EtherNet/IPNo
Supports protocol for Foundation FieldbusNo
Supports protocol for INTERBUSNo
Supports protocol for INTERBUS-SafetyNo
Supports protocol for LONNo
Supports protocol for ModbusNo
Supports protocol for PROFIBUSNo
Supports protocol for PROFINET CBANo
Supports protocol for PROFINET IONo
Supports protocol for PROFIsafeNo
Supports protocol for SERCOSNo
Supports protocol for SUCONETNo
Supports protocol for SafetyBUS pNo
Supports protocol for TCP/IPNo
Supports protocol for other bus systemsNo
Overload release current setting1.25 to 5.0A
