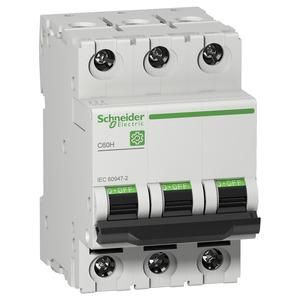

Schneider Electric M9F14332 M9 C60H 3P 32A C IEC60947-2 miniature circuit breaker

Schneider Electric M9F14332 M9 C60H 3P 32A C IEC60947-2 miniature circuit breaker

In stock

SKU: 695885

Price on request

€119.29

€0

Overview

Circuit breaker C60H - Product or component type: MCB - Miniature circuit breaker - Device abbreviation: C60H - Trip unit technology: thermomagnetic - Tripping characteristics: B, C, D - Standards: IEC/EN 60947-2 - Connection: cage terminals - Voltage: AC - Short-circuit breaking capacity: 15kA

Property	Value
Trip characteristic:	C
Rated current:	32.0 A
Rated voltage:	415.0 V
Type of voltage:	AC/DC
Frequency:	50.0 to 60.0 Hz
TE:	3.0
Number of poles (total):	3.0
Energy limitation class:	3.0
Additional equipment possible:	yes
Overvoltage category:	4.0
Installation depth:	44.0 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	30.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	15.0 kA
Pollution level:	3.0
Switching neutral conductor:	no
Number of protected poles:	3.0
Flush-mounted installation:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
Ambient temperature during operation:	-30.0 to 70.0 °C
Connectable conductor cross-section, stranded:	1.0 to 25.0 mm²
Connectable conductor cross-section, single-wire:	1.0 to 25.0 mm²
Explosion-proof:	no
