Flush-mounted installationNo

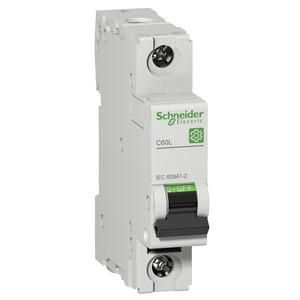

HABM9 C60L 1P 10A C IEC60947-2
HANM9F17110
GTIN3606480577956
Connectable conductor cross-section solid1.0 to 25.0 mm²
Connectable conductor cross-section stranded1.0 to 25.0 mm²
Number of protected poles1.0
Trigger characteristicsC
Rated insulation voltage Ui500.0V
Rated switching capacity Icu according to IEC 60947-2 at 230 V25.0kA
Rated voltage240.0V
Rated impulse withstand voltage Uimp6.0kV
Rated current10.0A
Installation depth44.0 mm
Energy limitation class3.0
Explosion-proofNo
Frequency50.0 to 60.0 Hz
Switching neutral conductorNo
Number of poles (total)1.0
IP protection)IP20
Voltage typeAC/DC
TE1.0
Ambient temperature during operation-30.0 to 70.0 °C
Degree of contamination3.0
Additional equipment possibleYes
Overvoltage category4.0
