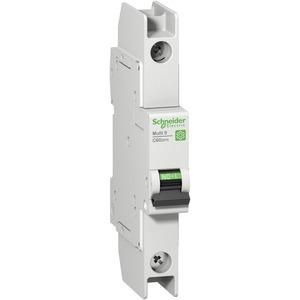

Schneider Electric M9F53130 M9 C60BPR 1P 30A D UL489 miniature circuit breaker

Schneider Electric M9F53130 M9 C60BPR 1P 30A D UL489 miniature circuit breaker

In stock

SKU: 696342

Price on request

€36.23

€0

Overview

Circuit breaker C60BPR - Product or component type: MCB - Miniature circuit breaker - Device abbreviation: C60BPR UL489 - Tripping unit technology: thermomagnetic - Tripping characteristics Z, C, D - Standards: UL 489 / CSA C22.2 No. 5 / IEC/EN 60947-2 / GB 14048-2 - Connection: ring terminals - Voltage: AC

Property	Value
Tripping characteristic:	D
Rated current:	30.0 A
Rated voltage:	277.0 V
Voltage type:	AC/DC
Frequency:	50.0 to 60.0 Hz
TE:	2.0
Number of poles (total):	1.0
Additional devices possible:	yes
Overvoltage category:	4.0
Installation depth:	48.0 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	10.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	3.0 kA
Pollution level:	3.0
Switching neutral conductor:	yes
Number of protected poles:	1.0
Flush-mounted installation:	no
Rated insulation voltage Ui:	500.0 V
Rated impulse withstand voltage Uimp:	6.0 kV
Ambient temperature during operation:	-30.0 to 70.0 °C
Connectable conductor cross-section, stranded:	1.0 to 16.0 mm²
Connectable conductor cross-section, single-wire:	1.0 to 25.0 mm²
Explosion-proof:	no
