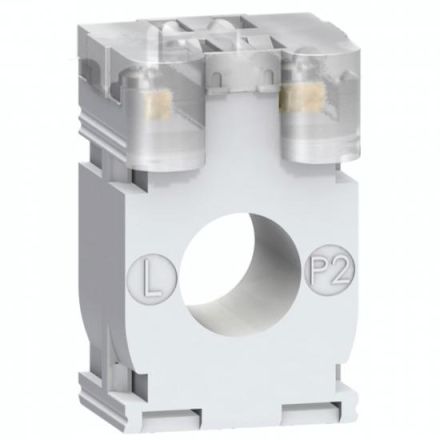

Schneider Electric METSECT5CC004 current transformer

In stock

SKU: 699827

Price on request

€28.52

€0

Overview

PowerLogic. Current transformer TI, type CC - for cables up to DM 21 mm. Transformer TI 40/5. Size_Ipn_5A 40, power VA GKl 3 1. Dimensions (WxHxD) 44 x 66 x 37 mm. Transformer ratio of primary current lpn to secondary current Isn of 5 A for measuring devices. Rated operating voltage Ue max. 720 V, frequency 50-60 Hz. Safety factor 40-4000 A FS 95 %.

Property	Value
Overcurrent limiting factor:	FS 5
Secondary connection:	Screw connection
With touch protection:	no
Design:	Through-hole current transformer
Primary rated current:	40.0 A
Secondary Rated current:	5.0 A
Secondary rated apparent power:	1.0 VA
Snap-on mounting:	no
Number of primary inputs:	1.0
With copper bar:	no
Calibrated:	no
Opening diameter:	21.0 mm
Accuracy class:	3
Height of opening:	0 mm
Opening width:	0 mm
