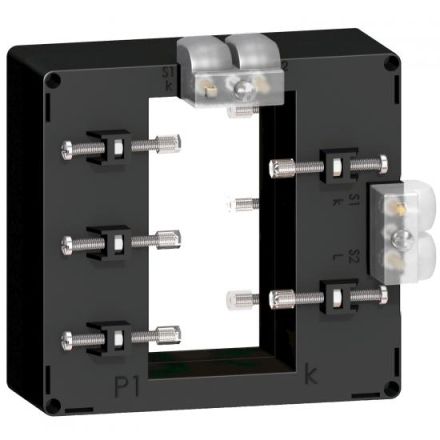

Schneider Electric METSECT5DE200 current transformer

In stock

SKU: 699857

Price on request

€131.35

€0

Overview

CONVERTER TI 2000/5 FL.BUSBAR 54x102. Series: PowerLogic - Product name: CT - Product or component type: Transformer - Secondary current: 5 A - Accuracy class: Class 1 maximum power: 25 VA, Class 0.5 maximum power: 20 VA - Rated operating current Ie: 2000 A.

Property	Value
Overcurrent limiting factor:	FS 5
Secondary connection:	Screw connection
With touch protection:	no
Design:	Through-hole current transformer
Primary rated current:	2000.0 A
Secondary rated current:	5.0 A
Secondary rated apparent power:	25.0 VA
Snap-on mounting:	no
Number of primary inputs:	1.0
With copper bar:	no
Calibrated:	no
Opening diameter:	0.0 mm
Accuracy class:	1
Height of opening:	103.0 mm
Width of opening:	55.0 mm
