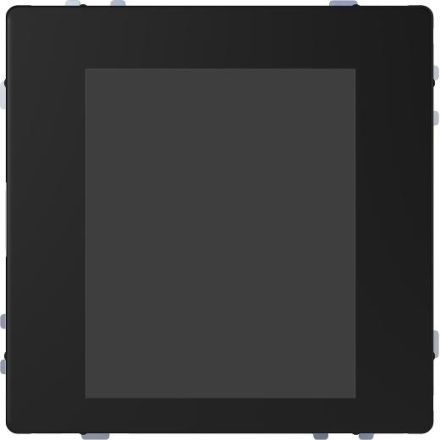

For system design. Convenient room controller with which up to 32 room functions and the room temperature can be controlled. All functions are displayed on a touch-sensitive screen and called up with simple finger movements. The user chooses between 3 surface designs that can be freely assigned to the room functions. The room temperature control can be displayed in 2 different designs. With room temperature controller, display and connection for the remote sensor. The room temperature controller can be used for heating and cooling with continuously adjustable KNX actuators or for controlling switching actuators and heating actuatorsxx ETS device functions -Switch-on behavior of the user interface. Proximity function The display and start screen only become visible when you approach. Gesture function The device recognizes a gesture (horizontal or vertical swipe) and triggers a function. For example, the light can be switched on when you enter the room. Cleaning mode For a certain period of time, neither touches nor gestures are recognized. Adjust the background lighting. Set the screen saver. With integrated bus coupler. The bus connection is made via a bus connection terminal. Software functions KNX control unit/button Switching, toggle, dimming (single/double surface), blinds (single/double surface), edges trigger 1-, 2-, 4- or 8-bit telegrams. Edges with 2-byte telegrams, 8-bit slider, scene recall, scene storage, message function, fan control, operating modes, setpoint shift. Functions Room temperature controller Controller type 2-point control, continuous PI control, switching PI control (PWM). Output Continuous in the range 0-100% or switching ON/OFF. Controller mode -Heating with one controller output. Cooling with one controller output. Heating and cooling with separate controller outputs. 2-stage heating with 2 controller outputs. 2-stage cooling with 2 controller outputs. 2-stage heating and cooling with 4 controller outputs. Operating modes comfort, comfort extension, standby (ECO), night reduction, frost/heat protection. Shifting of all setpoints. Saving of all setpoint temperatures and operating modes on reset. Monitoring of external temperature. Additional output of the control variable as a 1-byte value with PWM. Reporting function for actual temperature, valve protection function. Scene function. Operation touch display. Accessories dismantling protection MTN6270-0000. Remote sensor for KNX room temperature controller UP/PI 616790. Note Programmable with ETS4 and higher. Scope of delivery With bus connection terminal and support plate.
