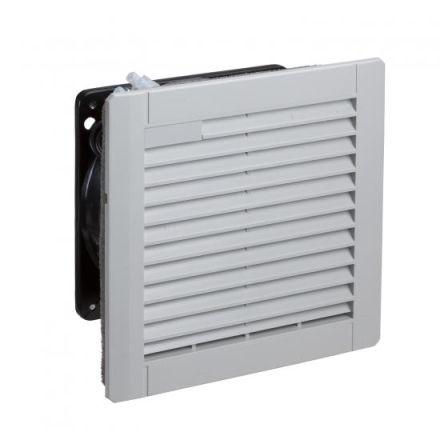

Schneider Electric NSY17992 fan

In stock

SKU: 699371

Price on request

€682.32

€0

Overview

ClimaSys CV fan CEM 460 m3/h. External dimensions H320 x W 320 x D150 mm. EMC fan with standard ventilation filter. 480 m3/h free flow at 50 Hz. Input voltage 230 V 50/60 Hz. Outlet grille made of ABS (acrylonitrile butadiene styrene), axial motor frame made of steel. Grey RAL 7035. Protection class IP 54. Cut-out dimensions 292 x 292 mm.

Property	Value
Rated power:	80.0 W
Height:	325.0 mm
Width:	325.0 mm
Depth:	163.0 mm
Voltage type:	AC
With filter:	yes
Operating voltage AC 50 Hz:	230.0 V
Operating voltage AC 60 Hz:	230.0 V
Volume flow, free blowing:	460.0 m³/h
Suitable for 482.6 mm (19 inch) installation:	no
Circulation fan:	yes
Suitable for wall installation:	no
Designed as a slide-in fan:	yes
Number of fans:	1.0
Roof fan:	no
EMC version:	yes
Protection class (IP):	IP54
Mounting type:	snap fastening
Color:	gray
RAL number:	7035.0
With protective cover:	yes
Noise emission:	57.0 dB(A)
