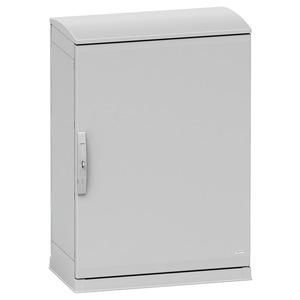

Schneider Electric NSYPHDZT15126P H1593 B1250 T620 IP55 solid door heavy duty enclosure

In stock
SKU: 691546
€3,148.52
Into a basketIn the basketGo

Overview

High performance housing for outdoor installation H 1593 W 1250 D 620, IP55, solid door. Series: Thalassa- - Product name: PHD - Product specific application: Outdoor use heavy load - Product certifications: Bureau Veritas according to IEC 61439-5 (2010) , Bureau Veritas according to IEC 61969-3 (2011) , DEKRA according to IEC 62208 (2011) , UL according to UL 508 A (2007) - Equipment application: Multi-purpose - Product or component type: Suitable cabinet - Short name of the equipment: PHDZT - Nominal housing height: 1593 mm - Height: 38 mm - Nominal housing width: 1250 mm - Nominal housing depth: 620 mm - Equipment structure: 2 doors in double glass fiber reinforced polyester in side by side, 2 door retainers in sheet steel with anti-corrosion coating, 1 plan pocket in plastic A4 format, 1 housing in double glass fiber reinforced Polyester.

Property Value
Can be stacked: yes
Suitable for outdoor installation: yes
With rear door: no
Surface finish: untreated
Height: 1593 mm
Width: 1250 mm
Depth: 620 mm
Color: gray
Protection class (IP): IP55
RAL number: 7035
With mounting plate: no
Material: plastic
Number of locks: 2
Number of doors: 2
EMC version: no
With Viewing door: no
Depth-adjustable mounting plate: no
Suitable for metric mounting: no
With ventilation door: no
Floor installation possible: yes
Mast mounting: no
Impact resistance: IK10
Sloped roof: yes
Wall mounting possible: no
Wall installation: no

Characteristics

HABH1593 W1250 D620 IP55 solid door
ManufacturerSchneider Electric
HANNSYPHDZT15126P
GTIN3606480676123
Surface finishUntreated
Width1250 mm
EMC versionNo
ColorGray
Suitable for outdoor installationYes
Height1593 mm
With mounting plateNo
RAL number7035
Impact resistanceIK10
Depth620 mm
MaterialPlastic
