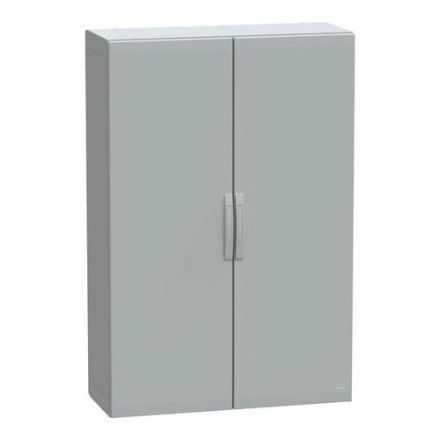

Schneider Electric NSYPLA15104G 7035 POLY-WS 1500X1000X420 2 DOORS standing cabinet

In stock
SKU: 693770
€1,393.47
Into a basketIn the basketGo

Overview

Thalassa PLA floor-standing polyester enclosure, completely sealed, PLA version. 1500 x 1000 x 420 mm. Sealed upper and lower sections, assembled with side panels. 4-point locking, 5 mm double-bit insert. 2 doors. Right and left opening 120 °. Accessible from the front and rear. Polyester reinforced with fiberglass. Protection class IP 65, IK10, color RAL 7035.

Property Value
Can be mounted in series: no
Suitable for outdoor installation: yes
With rear door: no
Surface finish: untreated
Height: 1500 mm
Width: 1000 mm
Depth: 420 mm
Color: gray
Protection class (IP): IP65
RAL number: 7035
With mounting plate: no
Material: plastic
Number of locks: 1
Number of doors: 2
EMC version: no
With viewing door: no
Depth-adjustable mounting plate: no
Suitable for metric mounting: no
With ventilation door: no
Floor installation possible: yes
Mast mounting: no
Impact resistance: IK10
Sloped roof: no
Wall mounting possible: no
Wall installation: no
Material quality: Polyester
Protection class (NEMA) : 13

Characteristics

HAB7035 POLY-WS 1500X1000X420 2 DOORS
ManufacturerSchneider Electric
HANNSYPLA15104G
GTIN3606480774690
Surface finishUntreated
Width1000 mm
EMC versionNo
ColorGray
Suitable for outdoor installationYes
Height1500 mm
With mounting plateNo
RAL number7035
Impact resistanceIK10
Depth420 mm
MaterialPlastic
Material qualityPolyester
