Schneider Electric NSYPLAT15103G 7035 POLY-WS 1500X1000X320 2 DOORS standing cabinet

In stock

SKU: 693842

Price on request

€1,630.41

€0

Overview

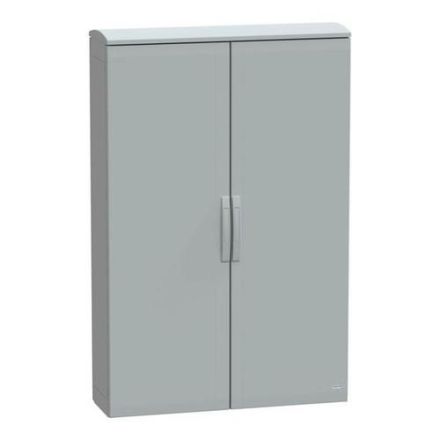

Thalassa PLAT floor-standing polyester enclosure with open top and rain cover. 1500 x 1000 x 320 mm. Sealed base, assembled with side panels. 4-point locking, 5 mm double bit insert. 2 doors. Right and left opening 120 °. Front and rear access. Polyester reinforced with fiberglass. Protection class IP 44, IK10, color RAL 7035.

Property	Value
Can be mounted in series:	no
Suitable for outdoor installation:	yes
With rear door:	no
Surface finish:	untreated
Height:	1500 mm
Width:	1000 mm
Depth:	320 mm
Color:	gray
Protection class (IP):	IP44
RAL number:	7035
With mounting plate:	no
Material:	plastic
Number of locks:	1
Number of doors:	2
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	no
With ventilation door:	no
Floor installation possible:	yes
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Wall mounting possible:	no
Wall installation:	no
Material quality:	Polyester
Protection class (NEMA) :	3
