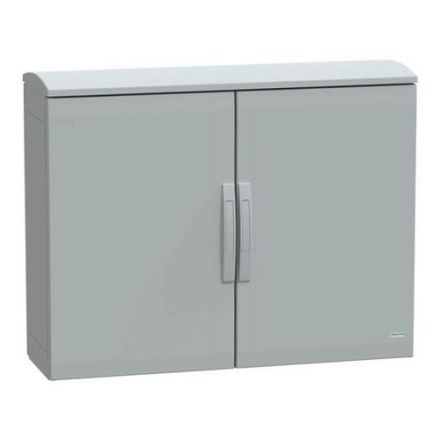

Schneider Electric NSYPLAT7103G 7035 POLY-WS 750X1000X320 2 DOORS standing cabinet

In stock

SKU: 693861

Price on request

€1,027

€0

Overview

Floor standing incl. polyester vers.PLAT open top w/ canopy 750x1000x320 IP44. Series: Thalassa - Product name: Thalassa PLA - Device application: Multipurpose - Product or component type: matching cabinet - Device short name: PLAT - Nominal housing height: 750 mm - Nominal housing width: 1000 mm - Nominal housing depth: 320 mm - Device structure: 2 back panel, 1 cap, 2 door, 1 bottom panel, 2 side panel, 1 top panel.

Property	Value
Can be mounted in series:	no
Suitable for outdoor installation:	yes
With rear door:	no
Version of Surface:	untreated
Height:	750 mm
Width :	1000 mm
Depth:	320 mm
Color :	grey
Protection class (IP) :	IP44
RAL number:	7035
With mounting plate:	no
Material:	Plastic
Number of locks:	1
Number of doors:	2
EMC version:	no
With viewing door:< /td>	no
Mounting plate depth adjustable:	no
Suitable for metric mounting :	no
With ventilation door:	no
Floor installation possible :	yes
Mast attachment:	no
Impact resistance:	IK10
Sloped roof:	no
Wall mounting possible:	no
Wall installation:	no
Material quality:	Polyester < /td>
Protection class (NEMA) :	3
