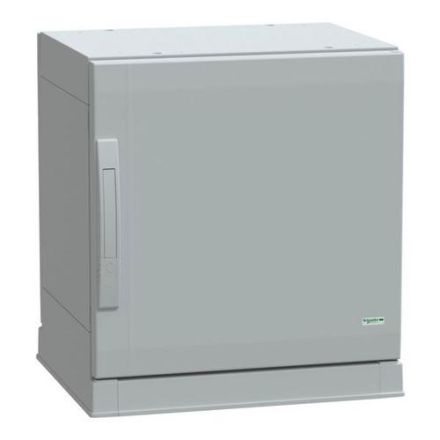

Schneider Electric NSYPLAZ554G 7035 POLY-WS 500X500X420 1 DOOR standing cabinet

In stock

SKU: 693904

Price on request

€573.32

€0

Overview

Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500x500x420 IP54. Series: Thalassa - Product name: Thalassa PLA - Device application: Multipurpose - Product or component type: matching cabinet - Device short name: PLAZ - Nominal housing height: 500 mm - Nominal housing width: 500 mm - Nominal housing depth: 420 mm - Device structure: 1 lower part, 2 side parts, 1 back wall, 1 door, 1 upper part, 1 base.

Property	Value
Can be mounted in series:	no
Suitable for outdoor installation:	yes
With rear door:	no
Version of Surface:	untreated
Height:	500 mm
Width :	500 mm
Depth:	420 mm
Colour :	grey
Protection class (IP) :	IP55
RAL number:	7035
With mounting plate:	no
Material:	Plastic
Number of locks:	1
Number of doors:	1
EMC version:	no
With viewing door:< /td>	no
Mounting plate depth adjustable:	no
Suitable for metric mounting :	no
With ventilation door:	no
Floor installation possible :	yes
Mast attachment:	no
Impact resistance:	IK10
Sloped roof:	no
Wall mounting possible:	no
Wall installation:	no
Material quality:	Polyester < /td>
Protection class (NEMA) :	13
