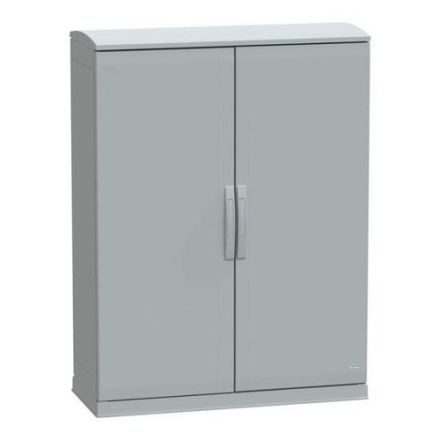

Schneider Electric NSYPLAZT12104G 7035 POLY-WS 1250X1000X420 2 DOORS standing cabinet

In stock

SKU: 693926

Price on request

€1,823.29

€0

Overview

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1250x1000x420 IP44. Series: Thalassa - Product name: Thalassa PLA - Device application: Multipurpose - Product or component type: matching cabinet - Device short name: PLAZT - Nominal housing height: 1250 mm - Nominal housing width: 1000 mm - Nominal housing depth: 420 mm - Device structure: 2 side panel, 1 top panel, 1 cap, 2 door, 2 back panel, 1 base, 1 bottom panel.

< /tr> < /tr>< tr> < tr> < tr> < td>Impact resistance:

Property	Value
Can be mounted in series:	no
Suitable for outdoor installation:	yes
With rear door:	no
Surface finish:	untreated
Height:	1250 mm
Width:	1000 mm
Depth:	420 mm
Color:	gray
Protection class (IP):	IP44
RAL number:	7035
With mounting plate:	no
Material:	Plastic
Number of locks:	1
Number of doors:	2
EMC version:	no
With viewing door:	no
Mounting plate depth adjustable:	no
Suitable for metric mounting:	no
With ventilation door:	no
Ground installation possible:	yes
Mast mounting:	no
IK10
Sloped roof:	no
Wall mounting possible:	no
Wall installation:	no
Material quality :	Polyester
Protection class (NEMA) :	3
