Schneider Electric NSYPLM75TVG 7035 747X536X300 Wall cabinet

In stock
SKU: 694634
€686.79
Into a basketIn the basketGo

Overview

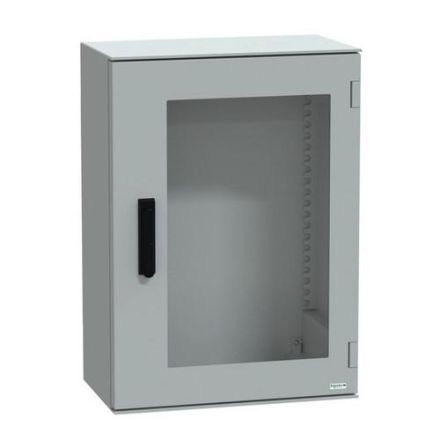

Thalassa PLM wall-mounted polyester enclosure monoblock with viewing door. 747x 536x 300 mm. Integrated rain cover, body molded in one piece with mounting notches on the back. Without mounting plate. 2 locks (3-point lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fiberglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13.4X) 960°C fire resistance.

Property Value
Can be stacked: no
Suitable for outdoor installation: yes
With rear door: no
Surface finish: untreated
Height: 747 mm
Width: 536 mm
Depth: 300 mm
Color: gray
Protection class (IP): IP66
RAL number: 7035
With mounting plate: no
Material: plastic
Number of locks: 2
Number of doors: 1
EMC version: no
With viewing door: yes
Depth-adjustable mounting plate: no
Suitable for metric mounting: yes
With ventilation door: no
Floor installation possible: no
Mast mounting: yes
Impact resistance: IK08
Sloped roof: no
Wall mounting possible: yes
Wall installation: no

Characteristics

HAB7035 747X536X300
ManufacturerSchneider Electric
HANNSYPLM75TVG
GTIN3606480776731
Surface finishUntreated
Width536 mm
EMC versionNo
ColorGray
Suitable for outdoor installationYes
Height747 mm
With mounting plateNo
RAL number7035
Impact resistanceIK08
Depth300 mm
MaterialPlastic
