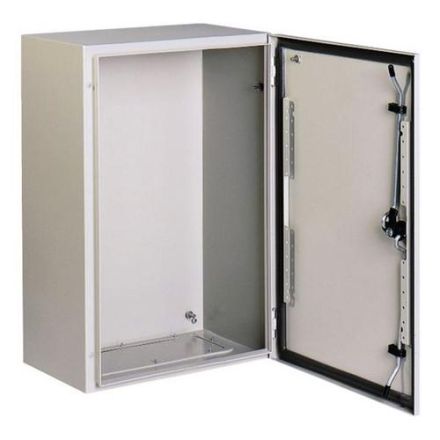

Schneider Electric NSYS3DEX4320 Spacial S3DEX ATEX H400xW300xD200 Enclosure

Schneider Electric NSYS3DEX4320 Spacial S3DEX ATEX H400xW300xD200 Enclosure

In stock

SKU: 691211

Price on request

€122.54

€0

Overview

Enclosure Spacial S3DEX (ATEX validated) H400xW300xT200.IP66 IK10 RAL7035.. Product series: Spacial S3D, Spacial CRN - Equipment application: ATEX validated application - Product or component type: Compact enclosure - Nominal enclosure height: 400 mm - Nominal enclosure width: 300 mm - Nominal enclosure depth: 200 mm - Description of mounting plate: without mounting plate - Type of feedthrough plate: Standard - Application: for potentially explosive areas - Equipment structure: Door 1, body with clamped blind rivet nuts, locking 1.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	powder-coated
Height:	400.0 mm
Width:	300.0 mm
Depth:	200.0 mm
Color:	gray
Protection class (IP):	IP66
RAL number:	7035.0
With mounting plate:	no
Material:	steel
Number of locks:	1.0
Number of doors:	1.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	yes
With Ventilation door:	no
Pole mounting:	yes
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	4X
Freestanding:	no
Floor-standing wall model:	no
Suitable for wall mounting:	yes
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the housing/cabinet according to IEC 62208:	250.0 N
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load of the mounting plate according to IEC 62208:	250.0 N
