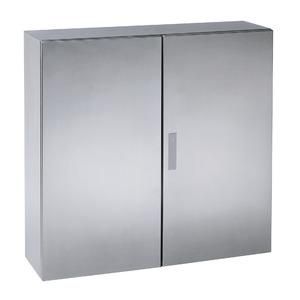

Schneider Electric NSYS3X121030H Spacial S3X 316L H1200xW1000xD300mm ed enclosure

Schneider Electric NSYS3X121030H Spacial S3X 316L H1200xW1000xD300mm ed enclosure

In stock

SKU: 691237

Price on request

€2,421.28

€0

Overview

SPACIAL S3X stainless steel 316L, Scotch Brite® finish, H1200xW1000xD300mm.. Product series: Spacial S3X - Equipment application: Multipurpose - Product or component type: Compact enclosure - Nominal enclosure height: 1200 mm - Nominal enclosure width: 1000 mm - Nominal enclosure depth: 300 mm - Equipment structure: 1 reinforcement frame drilled (door), 1 lock (door), 1 enclosure, 2 doors.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	other
Height:	1200.0 mm
Width:	1000.0 mm
Depth:	300.0 mm
Color:	stainless steel
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	stainless steel
Number of locks:	1.0
Number of doors:	1.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric installation:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	Stainless steel 316 (V4A)
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	yes
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the housing/cabinet according to IEC 62208:	50.0 N
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load of the mounting plate according to IEC 62208:	250.0 N
