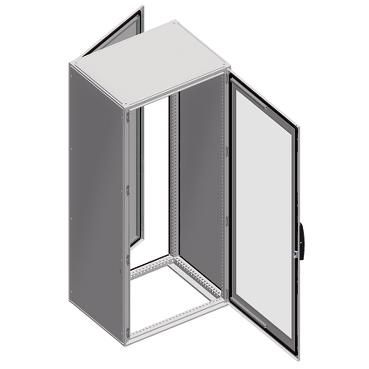

Schneider Electric NSYSF12880E Spacial SF fully assembled 1200x800x800mm electronic cabinet

In stock

SKU: 690474

Price on request

€2,133.78

€0

Overview

Spacial SF electronic steel enclosure with glazed door and solid door at the back. 1200 x 800 x 800 x 800 mm. Assembled. Without mounting plate. 4-point locking system with handle and 5 mm double-bit lock. Galvanized steel for frame and supports. Protection class IP 55, IK08, color RAL 7035. Includes 4 brackets for the mounting plate.

Property	Value
Suitable for outdoor installation:	no
With rear door:	yes
Surface finish:	powder-coated
Height:	1200.0 mm
Width:	800.0 mm
Depth:	800.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	yes
Mounting plate depth adjustable:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK08
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	other
Freestanding:	yes
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
