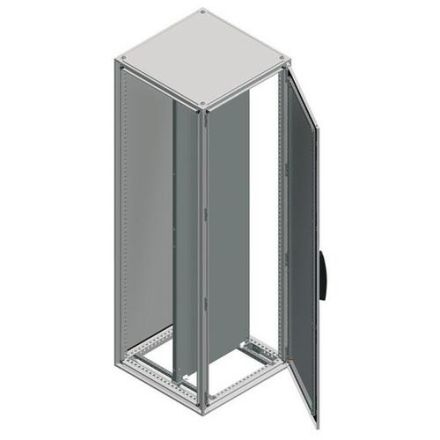

Schneider Electric NSYSF181060P Spacial SF m plate 1800x1000x600mm cabinet

In stock
SKU: 693110
€1,340.90
Into a basketIn the basketGo

Overview

Spacial SF pre-assembled steel housing with mounting plate. 1800 x 1000 x 600 mm. Assembled. Accessible from the front, rear and side. Without flange plate. 4-point locking system with handle and 5 mm double-bit lock. Housing made of sheet steel, powder-coated. Mounting plate made of sheet steel, galvanized. Protection class IP 55, IK10, grey RAL 7035. Offer consists of 1x door, 1x mounting plate, 2x guide rails, 4x mounting plate holder, 1x rear wall, 1x roof, 1x frame, 1x locking system.

Property Value
Suitable for outdoor installation: no
With rear door: no
Surface finish: powder-coated
Height: 1800.0 mm
Width: 1000.0 mm
Depth: 600.0 mm
Color: gray
Protection class (IP): IP55
RAL number: 7035.0
With mounting plate: yes
Material: steel
Number of locks: 1.0
Number of doors: 1.0
EMC version: no
With viewing door: no
Mounting plate depth adjustable: yes
Suitable for metric mounting: yes
With ventilation door: no
Mast mounting: no
Impact resistance: IK10
Sloped roof: no
Suitable for wall installation: no
Material quality: other
Protection class (NEMA): 12
Freestanding: no
Floor-standing wall model: yes
Suitable for wall mounting: no
Corner model: no
Intermediate installation: no
Can be coupled: no
Max. permissible load on the housing/cabinet according to IEC 62208: 1000.0 N
Max. permissible load on the door(s) according to IEC 62208: 60.0 N
Max. permissible load on the mounting plate according to IEC 62208: 300.0 N

Characteristics

HABSpacial SF m plate 1800x1000x600mm
ManufacturerSchneider Electric
HANNSYSF181060P
GTIN3606485117584
Surface finishPowder coated
Width1000.0 mm
EMC versionNo
ColorGray
Suitable for outdoor installationNo
Suitable for wall mountingNo
Height1800.0 mm
With mounting plateYes
RAL number7035.0
Impact resistanceIK10
IP protection)IP55
Protection class (NEMA)12
Depth600.0 mm
MaterialSteel
Material qualityOther
