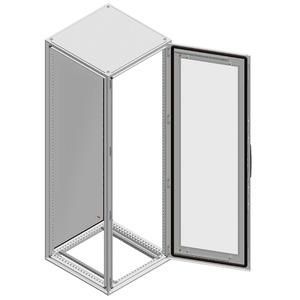

Schneider Electric NSYSF18860T Spacial SF o plate 1800x800x600mm cabinet

In stock
SKU: 693138
€2,012.50
Into a basketIn the basketGo

Overview

Spacial SF wall/bay cabinet fully assembled, without mounting plate. 1800 x 800 x 600mm. Unique frame profile based on the use of a high-strength, selected profile with 18 consecutive bends, which ensures very high stability up to 1,000. Structure: top and bottom frame and 4 vertical supports made of galvanized steel with a thickness of 1.5 mm. Door: sheet steel with a thickness of 1.8 mm. Coating: Epoxy-polyester, structured surface, color RAL 7035 (gray).

Property Value
Suitable for outdoor installation: no
With rear door: no
Surface finish: powder-coated
Height: 1800.0 mm
Width: 800.0 mm
Depth: 600.0 mm
Color: gray
Protection class (IP): IP55
RAL number: 7035.0
With mounting plate: no
Material: steel
Number of locks: 1.0
Number of doors: 1.0
EMC version: no
With Viewing door: yes
Mounting plate depth adjustable: no
Suitable for metric mounting: yes
With ventilation door: no
Mast mounting: no
Impact resistance: IK08
Sloped roof: no
Suitable for wall installation: no
Material quality: other
Protection class (NEMA): 12
Freestanding: no
Floor-standing wall model: yes
Suitable for wall mounting: no
Corner model: no
Intermediate installation: no
Can be coupled: no
Max. permissible load of the housing/cabinet according to IEC 62208: 1000.0 N
Max. permissible load of the mounting plate according to IEC 62208: 300.0 N

Characteristics

HABSpacial SF o plate 1800x800x600mm
ManufacturerSchneider Electric
HANNSYSF18860T
GTIN3606485118635
Surface finishPowder coated
Width800.0 mm
EMC versionNo
ColorGray
Suitable for outdoor installationNo
Suitable for wall mountingNo
Height1800.0 mm
With mounting plateNo
RAL number7035.0
Impact resistanceIK08
IP protection)IP55
Protection class (NEMA)12
Depth600.0 mm
MaterialSteel
Material qualityOther
