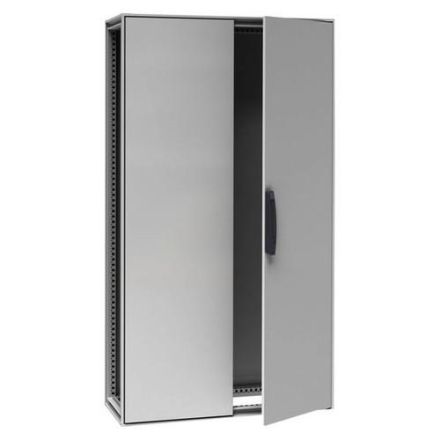

Schneider Electric NSYSF2016602DP Spacial SF with plate 2000x1600x600mm cabinet

Schneider Electric NSYSF2016602DP Spacial SF with plate 2000x1600x600mm cabinet

In stock

SKU: 693167

Price on request

€1,813.62

€0

Overview

Spacial SF suitable steel enclosure with 2 solid doors at the front. 2000 x 1600 x 600 mm. Assembled, one-piece body. Including mounting plate. 4-point locking system with handle and 5 mm double-bit lock. Galvanized steel for frame and supports. Protection class IP 55, IK10, color RAL 7035. Includes 4 brackets for the mounting plate.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	powder-coated
Height:	2000.0 mm
Width:	1600.0 mm
Depth:	600.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	yes
Material:	steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	no
Mounting plate depth adjustable:	yes
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load of the housing/cabinet according to IEC 62208:	1000.0 N
Max. permissible load of the door(s) according to IEC 62208:	60.0 N
Max. permissible load of the mounting plate according to IEC 62208:	300.0 N
