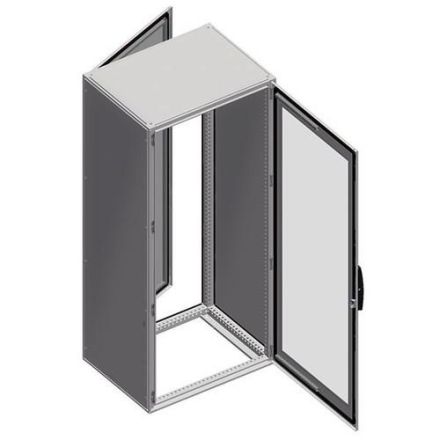

Schneider Electric NSYSF208100E Spacial SF assembled 2000x800x1000mm electronic cabinet

Schneider Electric NSYSF208100E Spacial SF assembled 2000x800x1000mm electronic cabinet

In stock

SKU: 690473

Price on request

€2,035.29

€0

Overview

Spacial SF electronics cabinet, fully assembled, 2000x800x1000mm. Series: Spacial - Product name: Spacial SF-E - Device application: electronic - Product or component type: matching cabinet - Nominal housing height: 2000 mm - Nominal housing width: 800 mm - Nominal housing depth: 1000 mm - Device structure: 2 side panels, 1 structure, 1 locking system with handle for door, 2 doors for front and rear, 1 roof.

Property	Value
Suitable for outdoor installation:	no
With rear door:	yes
Surface finish:	powder-coated
Height:	2000.0 mm
Width:	800.0 mm
Depth:	1000.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	yes
Mounting plate depth-adjustable:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the housing/cabinet according to IEC 62208:	1000.0 N
Max. permissible load on the door(s) according to IEC 62208:	60.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
