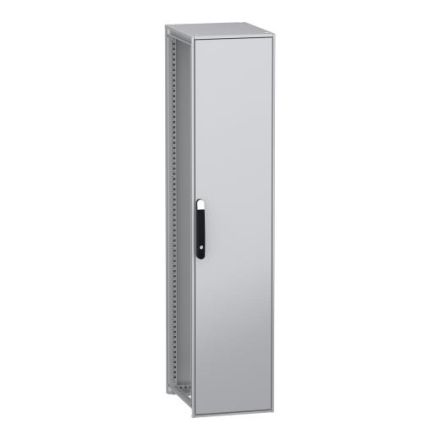

This PanelSeT SFN is a floor standing enclosure made of decarbonised steel suitable for multi-purpose applications. It contains recycled steel produced using renewable energy, resulting in a significant reduction in CO2 emissions. It has a nominal height, width and depth of 1800mm, 400mm and 500mm respectively. The frame and supports of the enclosure are made of galvanised steel to ensure a long service life. The door and panels are made of sheet steel, while the handle is made of polyamide 6 with 30% glass fibres. An epoxy polyester powder coating ensures a smooth appearance. The enclosure has a grey (RAL 7035) colour with a black (RAL 9005) handle. a plain door, a back panel and a roof. The door has an opening angle of up to 120 degrees and is reversible, which means it can be opened from both sides. The door is fitted with a four-point lock and a handle with a 5 mm double bit, which ensures safety. The housing has an IP55 protection rating, which means it is resistant to the ingress of dust, water and oil. The housing is also shockproof and has an IK10 rating. Operation is comfortable thanks to access from the back, front and side.
