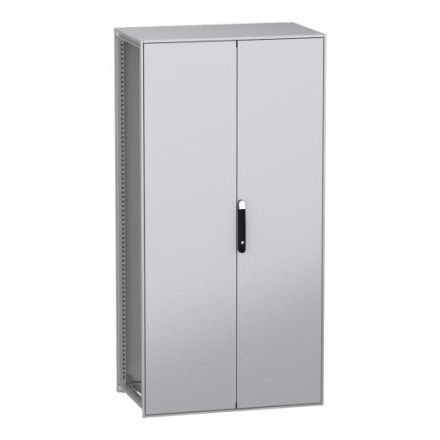

This PanelSeT SFN is a two-door, floor-standing enclosure made from decarbonised steel, suitable for multi-purpose applications. It contains recycled steel produced using renewable energy, resulting in a significant reduction in CO2 emissions. It has a nominal height, width and depth of 2000mm, 1000mm and 600mm respectively. The frame and supports of the enclosure are made from galvanised steel to ensure a long service life. The doors and panels are made from sheet steel, while the handle is made from polyamide 6 with 30% glass fibres. An epoxy polyester powder coating ensures a smooth appearance. The enclosure has a grey (RAL 7035) colour with a black (RAL 9005) handle. two plain doors, a back panel, a roof, two slide rails and a kit of quick mounting plate brackets. The doors have an opening angle of up to 120 degrees. The main door has a four-point lock with a handle that has a 5mm double bit for security, while the secondary door has a latch system with a handle. The housing has an IP55 protection rating, which means it is resistant to the ingress of dust, water and oil. The housing is also shockproof and has an IK10 rating. Operation is comfortable thanks to access from the back, front and side.
