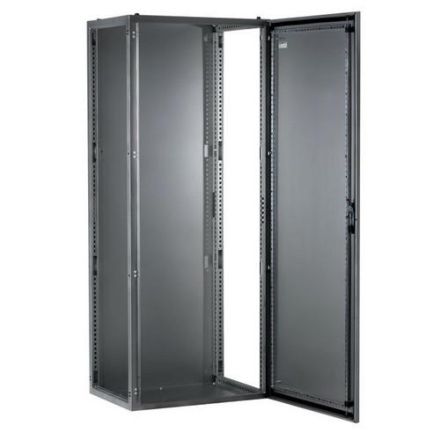

Schneider Electric NSYSFX201060 SFX 304L matching H2000xW1000xD600mm stainless steel enclosure

Schneider Electric NSYSFX201060 SFX 304L matching H2000xW1000xD600mm stainless steel enclosure

In stock

SKU: 690940

Price on request

€5,333.26

€0

Overview

SFX 304L matching stainless steel housing, H2000xW1000xD600mm, Scotch Brite® finish. Product series: Spacial SFX - Equipment application: Multipurpose - Product or component type: Matching cabinet - Nominal enclosure height: 2000 mm - Nominal enclosure width: 1000 mm - Nominal enclosure depth: 600 mm - Installation accessory type: Floorstanding - Equipment composition: 1 locking system with handle (door), 4 mounting plate bracket, 1 structure, 2 door with reinforcement frame, 1 cable entry plate.

Feature	Value
Suitable for outdoor installation:	no
With rear door:	no
Finish of the surface:	other
Height:	2000.0 mm
Width:	1000.0 mm
Depth:	600.0 mm
Color:	stainless steel
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	stainless steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	Stainless steel 316 (V4A)
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
