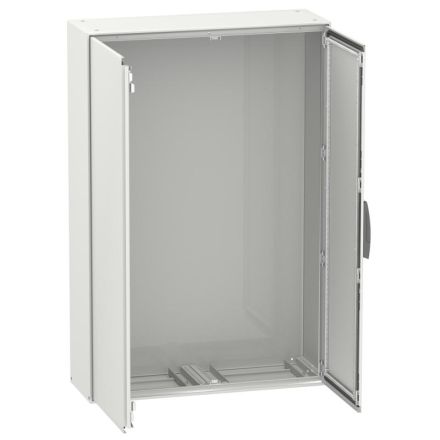

Schneider Electric NSYSM1610302DP 1600x1000x300mm with mounting plate Spacial SM monobloc floor-standing cabinet

Schneider Electric NSYSM1610302DP 1600x1000x300mm with mounting plate Spacial SM monobloc floor-standing cabinet

In stock

SKU: 690080

Price on request

€1,060.71

€0

Overview

Spacial SM Monobloc compact standing cabinet with 2 solid doors on the front. 1600 x 1000 x 300 mm. Welded rear panel, including mounting plate. 4-point door locking system with DB 5mm handle. Sheet steel, galvanized steel for mounting plate. Protection class IP 55, IK10, color RAL 7035. Includes 4 brackets for the mounting plate.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	powder-coated
Height:	1600.0 mm
Width:	1000.0 mm
Depth:	300.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	yes
Material:	steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	no
Mounting plate depth adjustable:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load of the housing/cabinet according to IEC 62208:	500.0 N
Max. permissible load of the door(s) according to IEC 62208:	60.0 N
Max. permissible load of the mounting plate according to IEC 62208:	300.0 N
