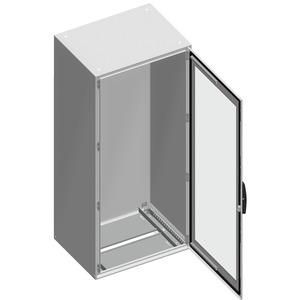

Schneider Electric NSYSM20830T SpacialMonobloc o plate 2000x800x300mm floor cabinet

Schneider Electric NSYSM20830T SpacialMonobloc o plate 2000x800x300mm floor cabinet

In stock

SKU: 694054

Price on request

€1,241.25

€0

Overview

Spacial SM Monobloc compact standing cabinet with glazed door. 2000 x 800 x 300 mm. Welded rear panel, without mounting plate. 4-point door locking system with DB 5mm handle. Made of steel. Protection class IP 55, IK08, color RAL 7035. Includes 4 brackets for the mounting plate.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	powder-coated
Height:	2000.0 mm
Width:	800.0 mm
Depth:	300.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	steel
Number of locks:	1.0
Number of doors:	1.0
EMC version:	no
With viewing door:	yes
Mounting plate depth adjustable:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK08
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	other
Freestanding:	yes
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load of the housing/cabinet according to IEC 62208:	5000.0 N
Max. permissible load of the door(s) according to IEC 62208:	0.0 N
Max. permissible load of the mounting plate according to IEC 62208:	5000.0 N
