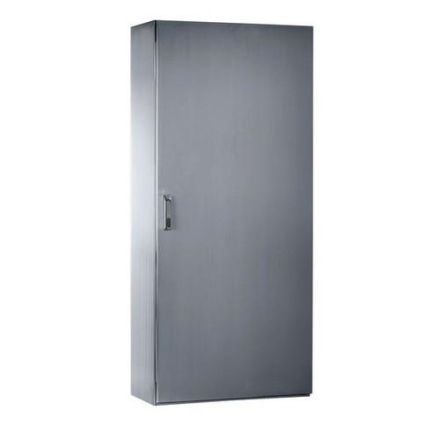

Schneider Electric NSYSMX181240 SMX-304L-Monoblock H1800xW1200xD400mm stainless steel housing

Schneider Electric NSYSMX181240 SMX-304L-Monoblock H1800xW1200xD400mm stainless steel housing

In stock

SKU: 690579

Price on request

€4,108.11

€0

Overview

SMX-304L monoblock stainless steel housing, H1800xW1200xD400mm, Scotch Brite® finish. Product series: Spacial SMX - Equipment application: Multipurpose - Product or component type: Compact enclosure - Nominal enclosure height: 1800 mm - Nominal enclosure width: 1200 mm - Nominal enclosure depth: 400 mm - Installation accessory type: floorstanding - Equipment structure: 2 doors, 1 cable entry plate, 4 mounting plate brackets, 1 locking system with handle (door), 1 enclosure.

Feature	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	brushed/sanded
Height:	1800.0 mm
Width:	1200.0 mm
Depth:	400.0 mm
Color:	stainless steel
Protection class (IP):	IP55
RAL number:	7038.0
With mounting plate:	no
Material:	stainless steel
Number of locks:	1.0
Number of doors:	2.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	no
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	Stainless steel 316 (V4A)
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
