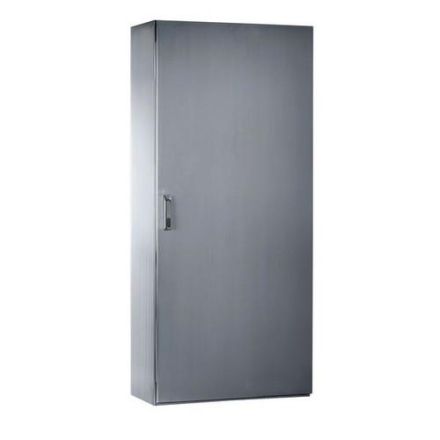

Schneider Electric NSYSMX181640 SMX-304L-Monoblock H1800xW1600xD400mm stainless steel housing

In stock
SKU: 690577
€5,342
Into a basketIn the basketGo

Overview

Spacial SMX stainless steel monobloc enclosure, double door. 1800 x 1600 x 400 mm. Compact floor standing enclosure. No mounting plate included. 2 door(s). One-piece body folded and welded. 3-point locking, handle with 5 mm double bit insert. Validations UL 508, CAN/CSA 22. Stainless steel 304L, Scotch-Brite brushed. IP54, IK10. Corrosive, specific hygiene property.

Property Value
Suitable for outdoor installation: no
With rear door: no
Surface finish: brushed/sanded
Height: 1800.0 mm
Width: 1600.0 mm
Depth: 400.0 mm
Color: stainless steel
Protection class (IP): IP55
RAL number: 7040.0
With mounting plate: no
Material: stainless steel
Number of locks: 3.0
Number of doors: 1.0
EMC version: no
With Viewing door: no
Mounting plate depth adjustable: no
Suitable for metric mounting: no
With ventilation door: no
Mast mounting: no
Impact resistance: IK10
Sloped roof: no
Suitable for wall installation: no
Material quality: Stainless steel 316 (V4A)
Protection class (NEMA): 12
Freestanding: no
Floor-standing wall model: yes
Suitable for wall mounting: no
Corner model: no
Intermediate installation: no
Can be coupled: no
Max. permissible load on the door(s) according to IEC 62208: 50.0 N
Max. permissible load on the mounting plate according to IEC 62208: 300.0 N

Characteristics

HABSMX-304L-Monoblock H1800xW1600xD400mm
ManufacturerSchneider Electric
HANNSYSMX181640
GTIN3606480155772
Surface finishBrushed/sanded
Width1600.0 mm
EMC versionNo
Suitable for outdoor installationNo
Suitable for wall mountingNo
Height1800.0 mm
With mounting plateNo
RAL number7040.0
Impact resistanceIK10
IP protection)IP55
Protection class (NEMA)12
Depth400.0 mm
MaterialStainless steel
Material qualityStainless steel 316 (V4A)
Schneider Electric NSYSMX181640 SMX-304L-Monoblock H1800xW1600xD400mm stainless steel housing
Schneider Electric NSYSMX181640 SMX-304L-Monoblock H1800xW1600xD400mm stainless steel housing
