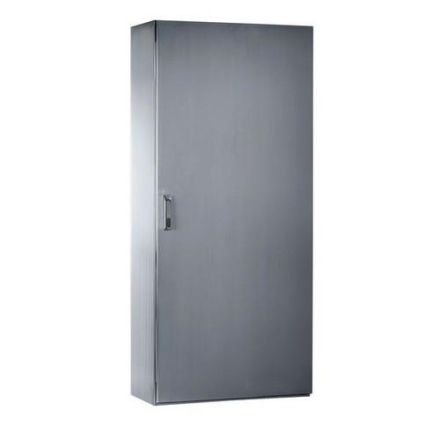

Schneider Electric NSYSMX18840 SMX-304L-Monoblock H1800xW800xD400mm stainless steel housing

Schneider Electric NSYSMX18840 SMX-304L-Monoblock H1800xW800xD400mm stainless steel housing

In stock

SKU: 690574

Price on request

€3,280.65

€0

Overview

Spacial SMX stainless steel monobloc enclosure. 1800 x 800 x 400 x 400 mm. Compact floor-standing enclosure. No mounting plate included. 1 door. One-piece body folded and welded. 3-point locking, handle with 5 mm double-bit insert. Validations UL 508, CAN/CSA 22. Stainless steel 304L, Scotch-Brite brushed. IP54, IK10. Corrosive, specific hygiene property.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	brushed/sanded
Height:	1800.0 mm
Width:	800.0 mm
Depth:	400.0 mm
Color:	stainless steel
Protection class (IP):	IP55
RAL number:	7042.0
With mounting plate:	no
Material:	stainless steel
Number of locks:	3.0
Number of doors:	1.0
EMC version:	no
With Viewing door:	no
Mounting plate depth adjustable:	no
Suitable for metric mounting:	no
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	Stainless steel 316 (V4A)
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
