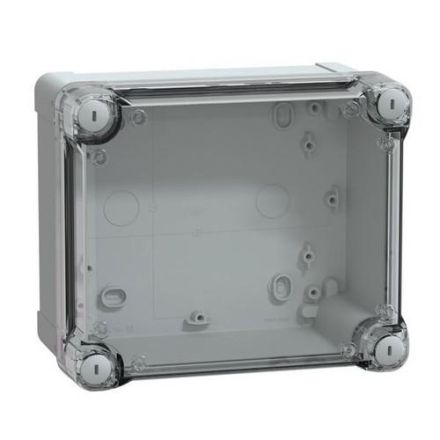

Schneider Electric NSYTBS191610HT In.H175W150D100 Out.H193W164D105 H40 Housing

In stock
SKU: 691311
€28.51
Into a basketIn the basketGo

Overview

Thalassa TBS industrial box in ABS with transparent lid H40. Internal dimensions 175 x 150 x 100 x 100 mm. Ext 193 x 164 x 105 mm. Wall mounting case with high transparent lid. Screw locking with captive plastic screws (slotted). Validations DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene styrene), ambient temperature for storage/operation (-15 to 40 °C) / (-25 to 60 °C). IP66 (NEMA 4.4X), IK07, gray RAL 7035, insulation class II. Packaging unit 2 pieces.

Property Value
Height: 193.0 mm
Width: 164.0 mm
Depth: 105.0 mm
Inner depth: 100.0 mm
Protection class (IP): IP66
Protection class: II
Impact resistance: IK07
Housing material: Plastic
RAL number: 7035.0
Mounting type: Surface-mounted
Suitable for outdoor use: yes
Surface protection: untreated
Suitable for lightning protection: yes
Mounting option: no
With mounting plate: no
Number of cable entries: 2.0
Number of modules: 0.0
Number of openings for flange plates: 0.0
Number of rows: 0.0
Type of cover: Cover
Type of door: without
Cover design: closed
Functional integrity: without
Material thickness of housing: 12.5 mm
Material thickness of door/cover: 12.5 mm
With lock: no
Transparent cover/door: yes
Color: gray
Protection class (NEMA): 4

Characteristics

HABIn.H175W150D100 Out.H193W164D105 H40
ManufacturerSchneider Electric
HANNSYTBS191610HT
GTIN3606480165474
Cultivation optionNo
Number of cable entries2.0
Number of modules0.0
Number of rows0.0
Number of openings for flange plates0.0
Type of coverLid
Type of doorWithout
Cover designClosed
Width164.0 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useYes
Suitable for lightning protectionYes
Height193.0 mm
Internal depth100.0 mm
Housing material thickness12.5 mm
Material thickness door/lid12.5 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
Surface protectionUntreated
RAL number7035.0
Impact resistanceIK07
IP protection)IP66
Protection class (NEMA)4
Protection classII
Depth105.0 mm
Transparent lid/doorYes
Housing materialPlastic
