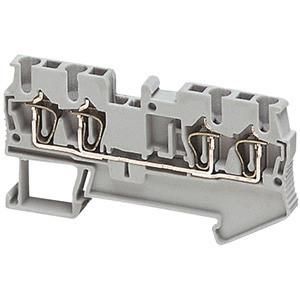

Schneider Electric NSYTRR24 Linergy 2.5qmm 24A 2x2 spring grey terminal block

In stock

SKU: 691978

Price on request

€1.63

€0

Overview

Linergy terminal block for feed-through, 2.5mm2, 24A, 1 level, 2x2, spring, grey. Series: Linergy - Product or component type: Terminal block - Device short name: TRR - Terminal block type: Through-hole - Mounting variant: plug-in - Nominal cross-section: 2.5 mm - Length: 72 mm - Quantity per set: Set of 50 pieces.

Property	Value
Connection position:	top
Width/grid dimension:	5.2 mm
Length:	72 mm
Height with lowest mounting type:	36.5 mm
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 mm
Connectable conductor cross-section, stranded:	2.5 mm
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	24 A
Operating temperature:	130 °C
Connectable conductor cross-section, single-wire:	4 mm
Connectable conductor cross-section, fine-wire with wire end ferrule:	2.5 mm
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels internally bridged:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes
