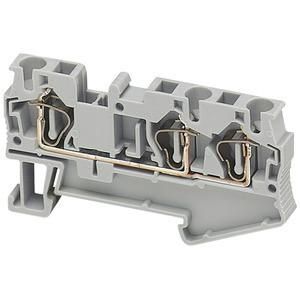

Schneider Electric NSYTRR43 Linergy 4qmm 32A 1 level 1x2 spring grey terminal block

In stock
SKU: 691983
€1.59
Into a basketIn the basketGo

Overview

Linergy terminal block for feed-through, 4mm2, 32A, 1 level, 1x2, spring, grey. Series: Linergy - Product or component type: Terminal block - Device short name: TRR - Terminal block type: Through-hole - Mounting variant: plug-in - Nominal cross-section: 4 mm - Length: 71.5 mm - Quantity per set: Set of 50 pieces.

Property Value
Connection position: top
Width/grid dimension: 6.2 mm
Length: 71.5 mm
Height with lowest mounting type: 36.5 mm
Color: gray
Connectable conductor cross-section, fine-stranded without wire end ferrule: 4 mm
Connectable conductor cross-section, stranded: 4 mm
Rated voltage: 800 V
Number of levels: 1
Number of terminal points per level: 3
Rated current In: 32 A
Operating temperature: 130 °C
Connectable conductor cross-section, single-wire: 6 mm
Connectable conductor cross-section, fine-wire with wire end ferrule: 4 mm
Design of electrical connection 1: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Internal bridged levels: no
Material of the insulating body: Thermoplastic
Explosion-tested version 'Ex e': yes

Characteristics

HABLinergy 4qmm 32A 1 level 1x2 spring grey
Minimal order50 pcs
ManufacturerSchneider Electric
HANNSYTRR43
GTIN3606480532719
Connectable conductor cross-section solid6 mm
Connectable conductor cross-section stranded4 mm
Rated voltage800V
Rated current In32 A
Operating temperatur130°C
Flammability class of the insulating material according to UL 94V0
ColorGray
Length71.5 mm
Mounting typeDIN rail TH35
