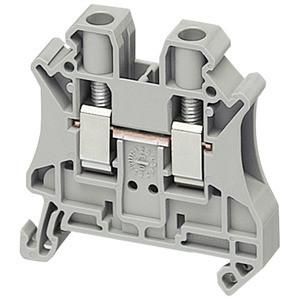

Schneider Electric NSYTRV62 Linergy 6qmm 41A 1 level 1x1 screw terminal block

In stock

SKU: 692014

Price on request

€1.74

€0

Overview

Linergy terminal block for feed-through, 6mm2, 41A, 1 level, 1x1, screw, grey. Series: Linergy - Product or component type: Terminal block - Device short name: TRV - Terminal block type: Through-hole - Mounting variant: plug-in - Nominal cross-section: 6 mm - Length: 47.7 mm - Quantity per set: Set of 50 pieces.

Property	Value
Connection position:	side
Width/grid dimension:	8.2 mm
Length:	47.7 mm
Height with lowest mounting type:	47.5 mm
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	10 mm
Connectable conductor cross-section, multi-stranded:	10 mm
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	41 A
Operating temperature:	130 °C
Connectable conductor cross-section, single-wire:	10 mm
Connectable conductor cross-section, fine-wire with wire end ferrule:	6 mm
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Internal bridged levels:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes
