Schneider Electric NSYVD2M17U5 Wall Mount VDM 17HE 2 Body D480 Rack

In stock
SKU: 692755
€1,032.85
Into a basketIn the basketGo

Overview

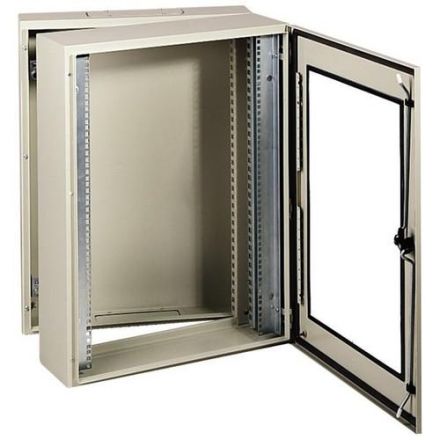

Spacial VDM wall enclosure (two-part enclosure body). Enclosure depth 480 mm. Compact enclosure for electronics and networks. 19-inch fixed frame, glazed door. 17 units (19 inches). 3 mm double-bit lock. Standard flange plate. Steel enclosure, galvanized steel for frame. Grey RAL 7035. Standard IEC 62208.

Property Value
Suitable for outdoor installation: no
With rear door: no
Surface finish: powder-coated
Height: 800.0 mm
Width: 600.0 mm
Depth: 480.0 mm
Color: gray
Protection class (IP): IP66
RAL number: 7035.0
With mounting plate: no
Material: steel
Number of locks: 3.0
Number of doors: 1.0
EMC version: no
With viewing door: no
Depth-adjustable mounting plate: no
Suitable for metric mounting: no
With ventilation door: no
Mast mounting: no
Impact resistance: IK08
Sloped roof: no
Suitable for wall installation: yes
Material quality: other
Protection class (NEMA): 4X
Freestanding: no
Suitable for wall mounting: yes
Corner model: no
Intermediate installation: no
Can be coupled: no
Max. permissible load of the housing/cabinet according to IEC 62208: 3.0 N

Characteristics

HABWall mounting VDM 17HE 2 bodies D480
ManufacturerSchneider Electric
HANNSYVD2M17U5
GTIN3606480174698
Surface finishPowder coated
Width600.0 mm
EMC versionNo
ColorGray
Suitable for outdoor installationNo
Suitable for wall mountingYes
Height800.0 mm
With mounting plateNo
RAL number7035.0
Impact resistanceIK08
IP protection)IP66
Protection class (NEMA)4X
Depth480.0 mm
MaterialSteel
Material qualityOther
