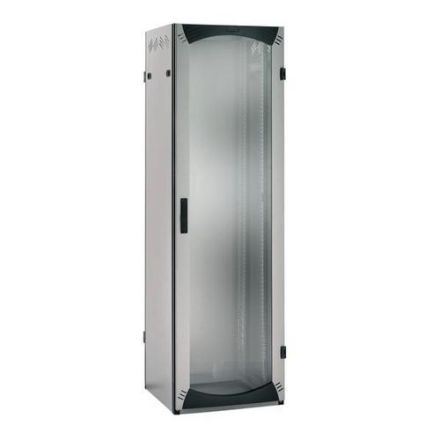

Schneider Electric NSYVDA24U68E 24HE W600 D800 fixed 19' door R7035 cable rack

In stock

SKU: 691813

Price on request

€1,067.63

€0

Overview

Cable rack, floor standing 24HE W600 D800 fixed 19' glass door R7035. Product series: Actassi VDA - Product or component type: 19' enclosure - Equipment application: Cabling - Product specific application: for mounting 19' equipment, for protecting network connection equipment - Colour tone: Door : light grey (RAL 7035) , Panels : light grey (RAL 7035) , Top and bottom : light grey (RAL 7035) , Structure : dark grey (RAL 7011) .

Property	Value
Colour:	grey
Number of height units (HE):	24.0
Height:	1200.0 mm
Width:	600.0 mm
Depth:	800.0 mm
Number of doors:	2.0
Type of ventilation:	passive
Protection class (IP):	IP20
With front door:	yes
Design of the profile rail:	without
Material:	steel
Can be dismantled:	yes
RAL number:	7035.0
With earthing:	yes
Surface finish:	powder-coated
With roof sheet:	yes
With side walls:	yes
Design:	with fixed frame
Grid dimension:	482.6 mm (19 inches)
Max. Load capacity:	400.0 kg
Protection class (NEMA):	1
