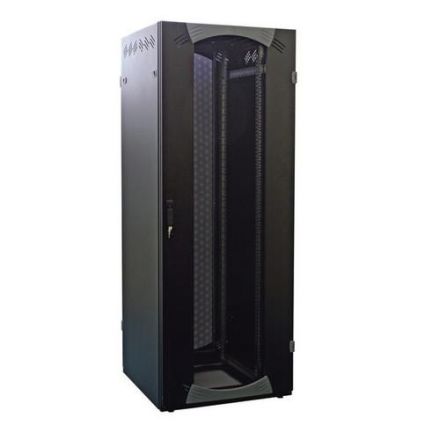

Schneider Electric NSYVDA42U68EN 42HE W600 D800 fixed 19' door R9011 cable rack

In stock

SKU: 691847

Price on request

€2,019.48

€0

Overview

Cable rack, floor standing 42HE W600 D800 fixed 19' glass door R9011. Product range: Actassi VDA - Product or component type: 19' enclosure - Equipment application: Cabling - Product specific application: for the protection of network connection equipment, for the mounting of 19' equipment - Colour tone: door : black (RAL 9011) , structure : black (RAL 9011) , panels : black (RAL 9011) , top and bottom : black (RAL 9011) .

Property	Value
Colour:	black
Number of height units (U):	42.0
Height:	2000.0 mm
Width:	600.0 mm
Depth:	800.0 mm
Number of doors:	2.0
Type of ventilation:	passive
Protection class (IP):	IP20
With front door:	yes
Design of the profile rail:	without
Material:	steel
Can be dismantled:	yes
RAL number:	9011.0
With earthing:	yes
Surface finish:	powder-coated
With roof sheet:	yes
With side walls:	yes
Design:	with fixed frame
Grid dimension:	482.6 mm (19 inches)
Max. Load capacity:	400.0 kg
Protection class (NEMA):	1
