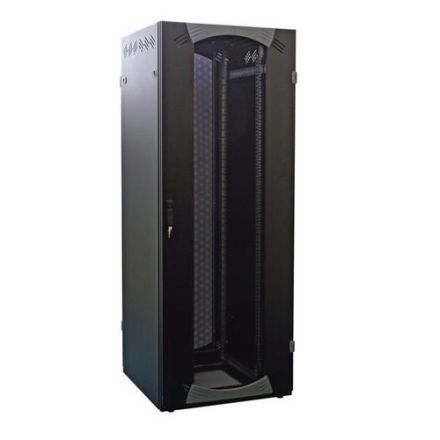

Schneider Electric NSYVDA42U86EN 42HE W800 D600 fixed 19' door R9011 cable rack

In stock

SKU: 691855

Price on request

€1,815.42

€0

Overview

Cable rack, floor standing 42HE W800 D600 fixed 19' glass door R9011. Product range: Actassi VDA - Product or component type: 19' enclosure - Equipment application: Cabling - Product specific application: for the protection of network connection equipment, for the mounting of 19' equipment - Color tone: Panels : black (RAL 9011) , Top and bottom : black (RAL 9011) , Door : black (RAL 9011) , Structure : black (RAL 9011) .

Property	Value
Color:	black
Number of height units (U):	42.0
Height:	2000.0 mm
Width:	800.0 mm
Depth:	600.0 mm
Number of doors:	2.0
Type of ventilation:	passive
Protection class (IP):	IP20
With front door:	yes
Design of the profile rail:	without
Material:	steel
Can be dismantled:	yes
RAL number:	9011.0
With earthing:	yes
Surface finish:	powder-coated
With roof sheet:	yes
With side walls:	yes
Design:	with fixed frame
Grid dimension:	482.6 mm (19 inches)
Max. Load capacity:	400.0 kg
Protection class (NEMA):	1
